DiV-Fusion Touchscreen video switcher

Precio de venta
£325
Precio habitual
£406
Ahorras
£81 (20%)
In stock! Usually ships within 24 hours.

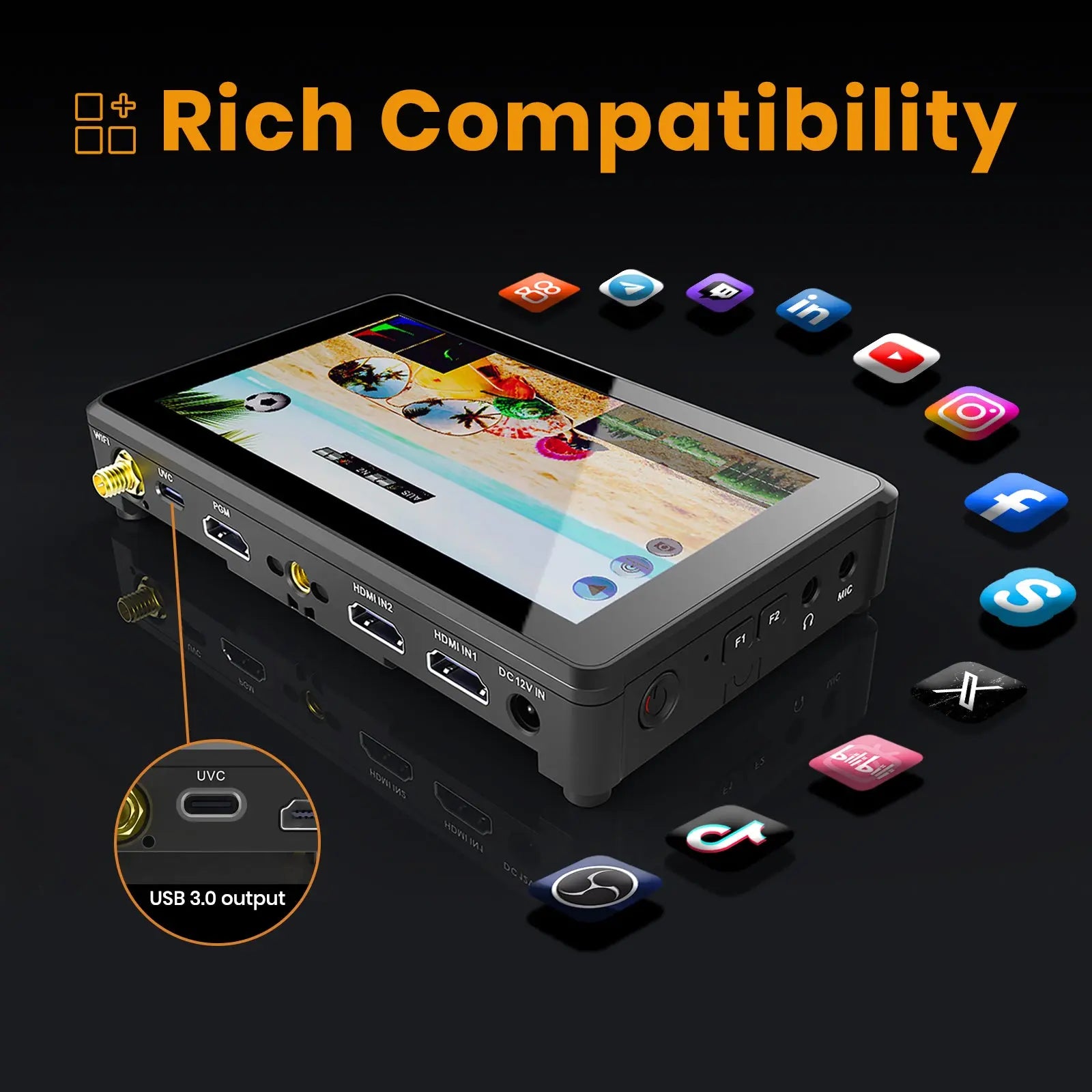

Introducing the versatile touchscreen video switcher, featuring two HDMI inputs (one supporting 4K at 60Hz) and one output, plus a UVC 3.0 output. Its 5.5-inch, 1800-nit high-brightness touch screen remains visible in direct sunlight. With advanced features like arbitrary cropping and image still frame capture, this compact device combines a switcher, monitor, and capture card into one.

Features
∙ Mini switcher, video capture, and professional monitor functions in one device, easy to carry.

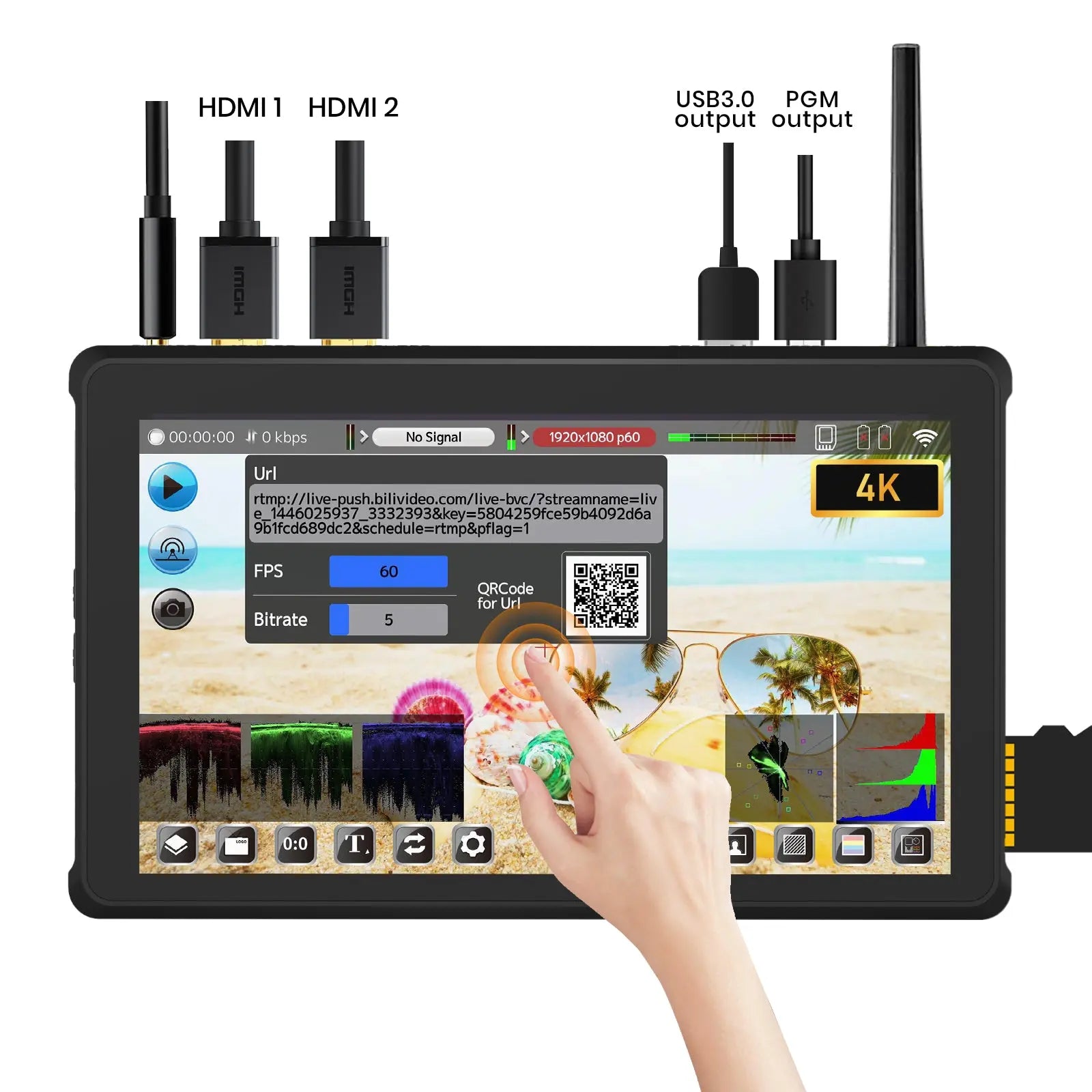

∙ Touch screen for convenient and quick operation.

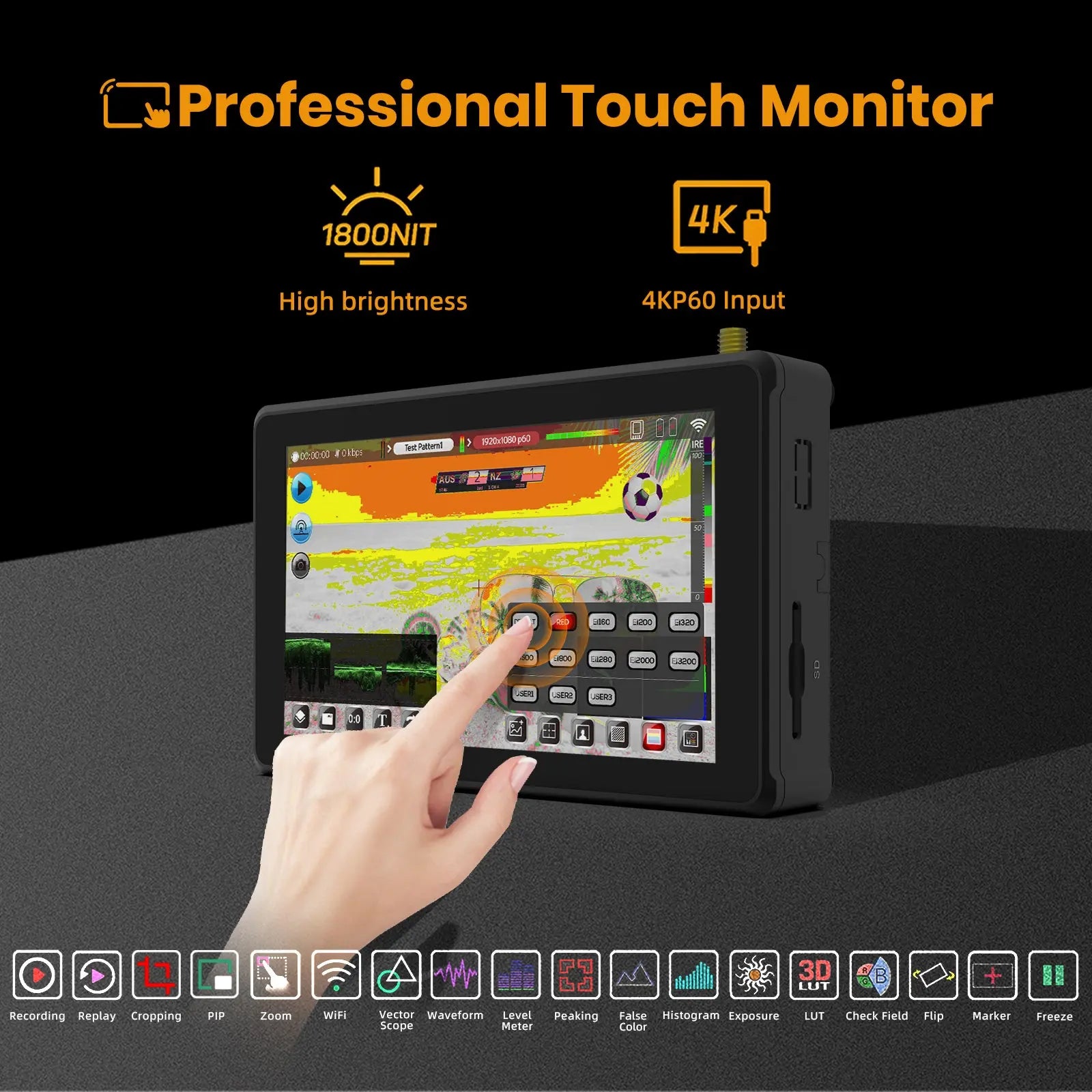

∙ 5” FHD LCD with touch functionality.
  channel 4K/60Hz and 1 channel 1920x1080p 60Hz HDMI 2.0 input, 1 HDMI PGM output, and 1 UVC 3.0 output.
∙ Supports multiple professional transition effects.
∙ DC 12V power supply and dual F970 battery support.
∙ Allows users to customize preset patterns and import images from the media library.
∙ Advanced scoreboard function for easier sports event live streaming.
∙ Supports advanced applications such as arbitrary cropping, zooming in, and layout customization.
∙ Supports image still frame capture and storage.

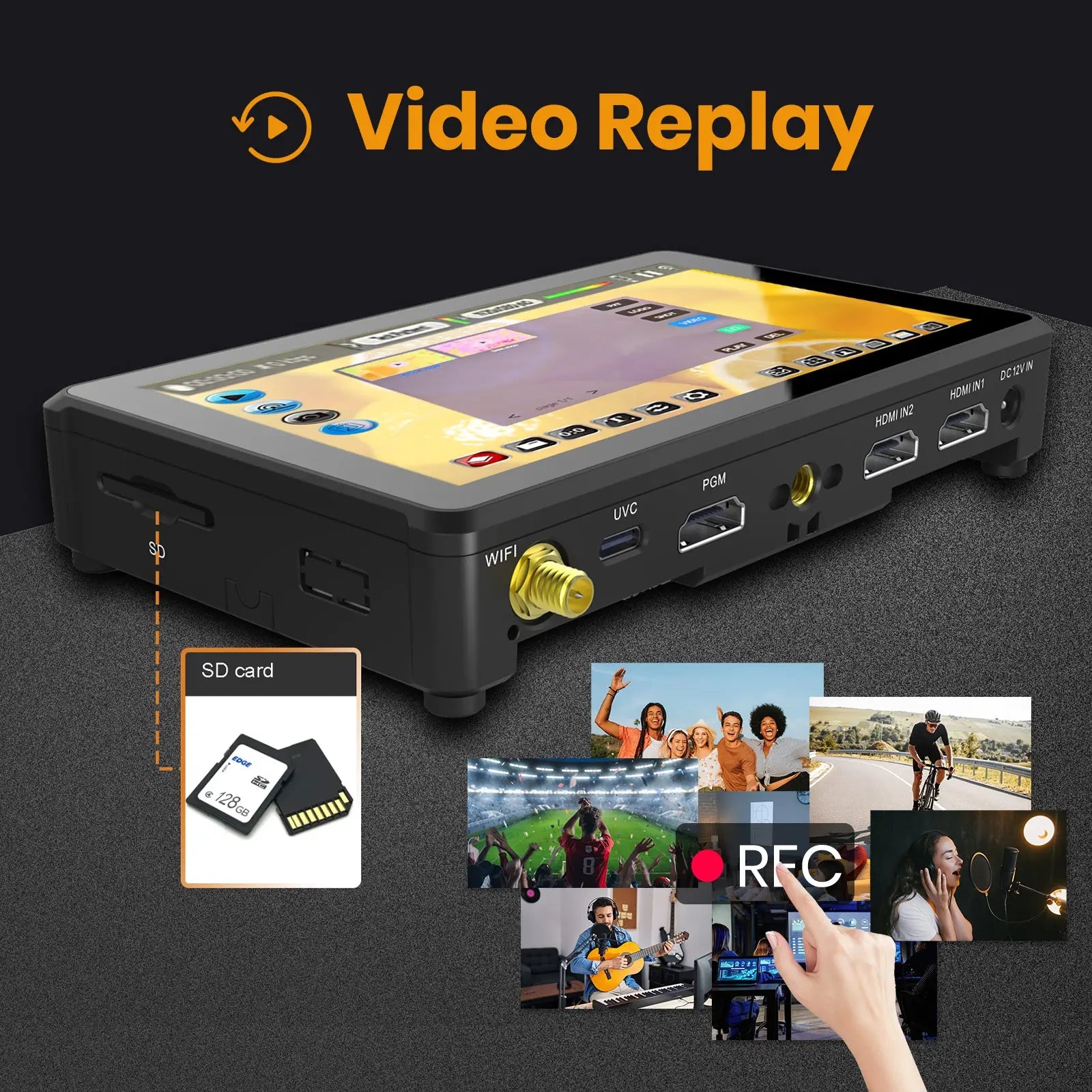

∙ Supports video recording, storage, and playback.

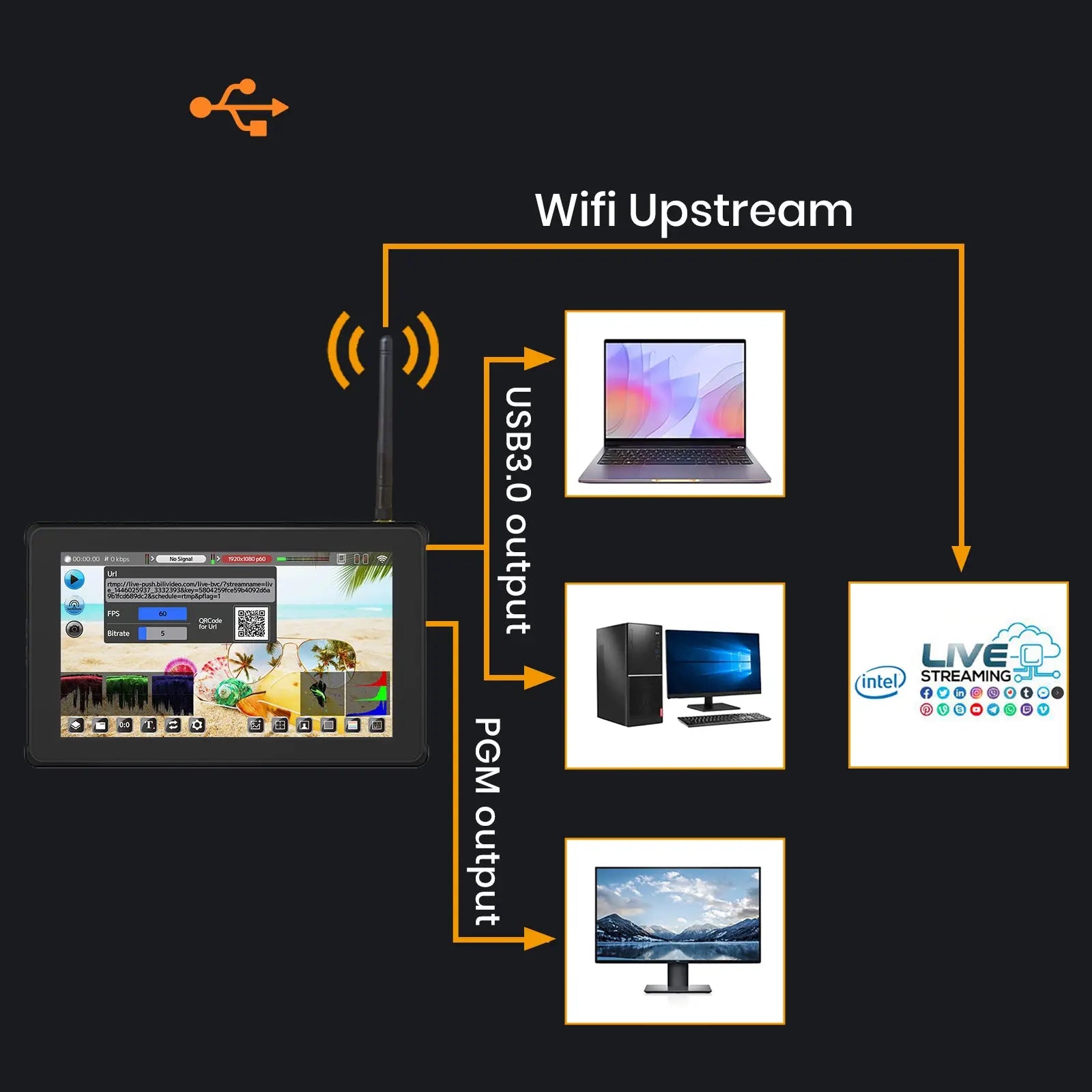

∙ Can stream on the RTMP multi-channel streaming network live streaming platform.

Parameters

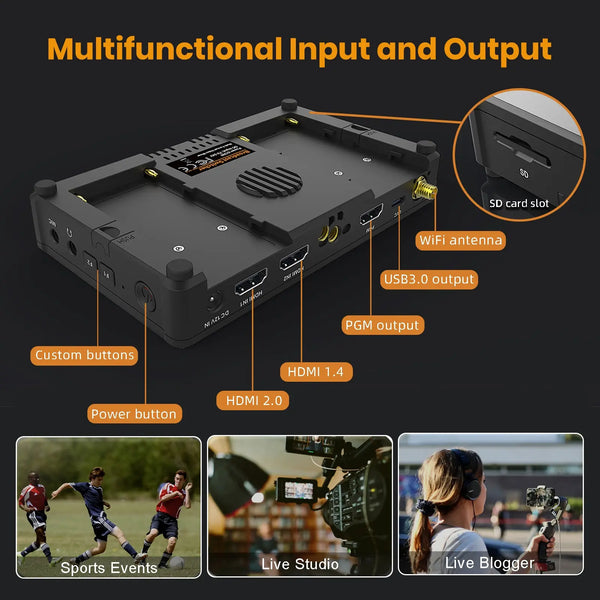

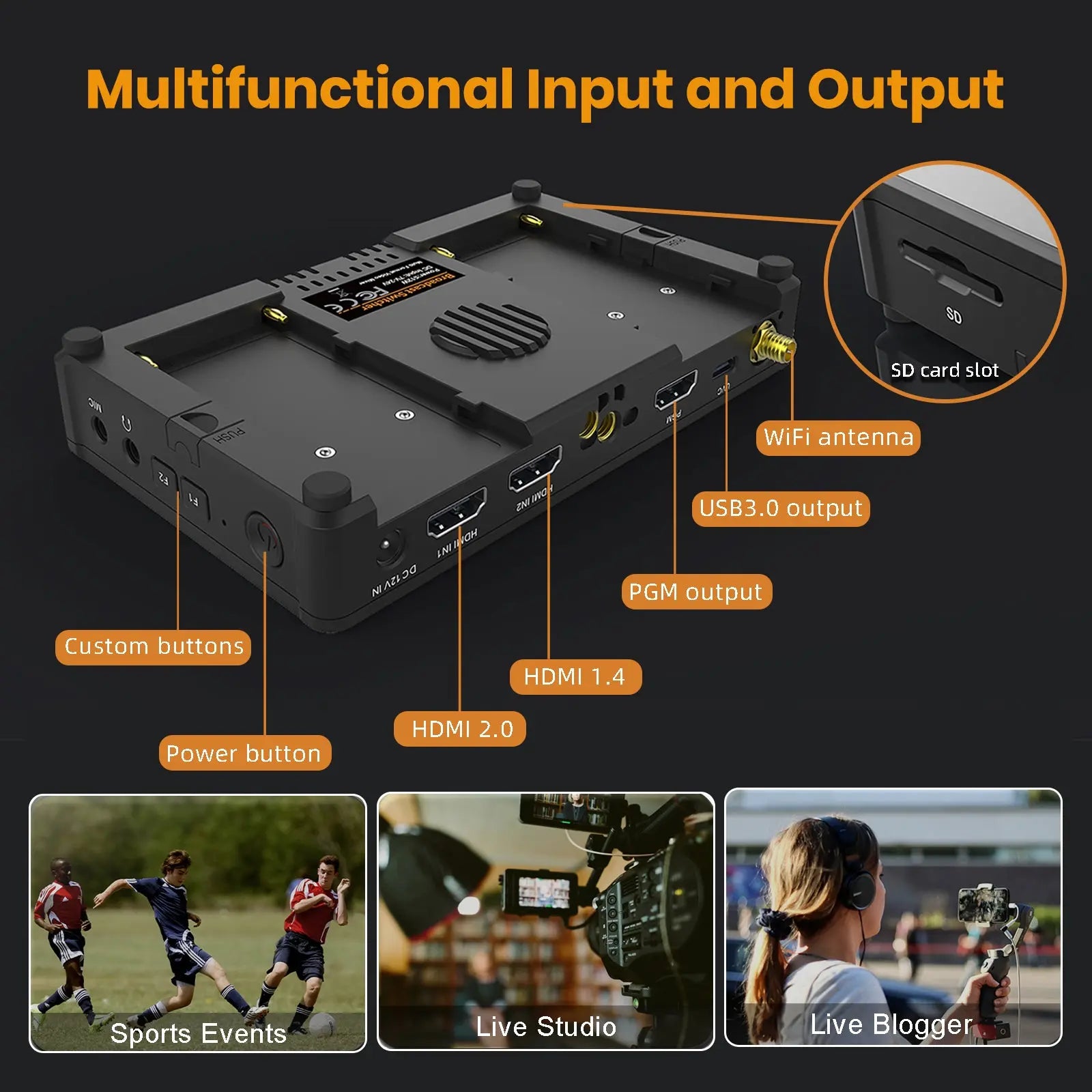

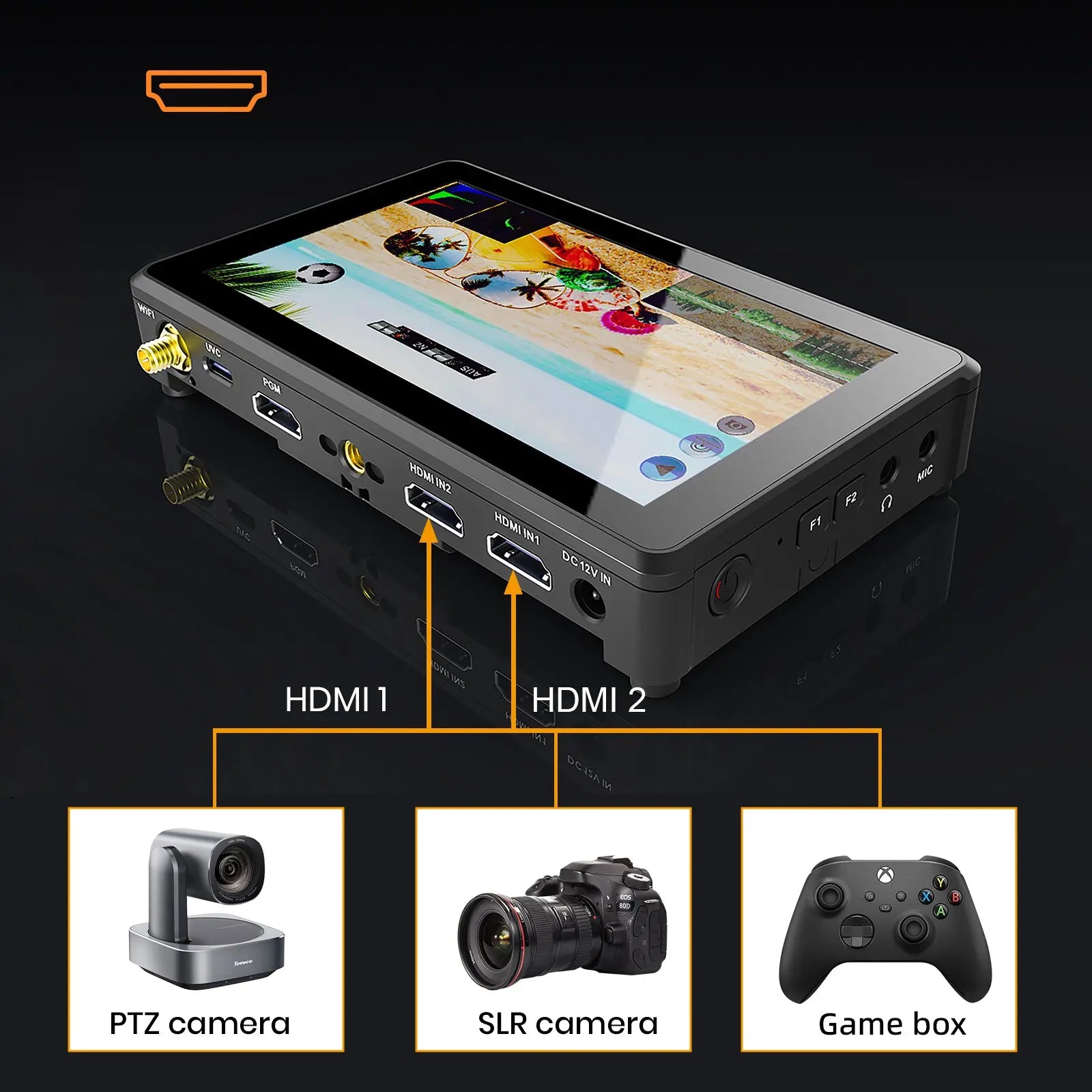

Video Source HDMI IN x 1(4K 60Hz)*HDMI IN x 1 (1920×1080p 60HZ)
Video Output PGM x 1 UVC x 1
Audio Input MIC/Line(3.5mm stereos)*1(Audio input)
SD card slot Video encoding storage, 3D LUT,SHOT, Firmware upgrade, etc
WIFI Network Streaming, PTZ Camera Control, Remote Control
Power DC 7~12V ≤12W+Dual F970 battery
Function
Effects WIPE/MIX/DIP
Layout Multi Layout format
Layer Supports two layers to achieve POP/PIP at any position and size
Matting Chroma Key×1 Support separate cropping settings for each layer
Mask Separate layer mask graphics, with built-in multiple mask graphics that can be customized for loading and moving anywhere
Audio HDMI×2 And MIC/ Line level ×1;Audio Delay: 0-5s
PTZ VISCA IP Protocol
Media Local images: Up to 100 images can be imported
Capture images: Up to 100 images can be captured
Stream media H.264 encoder, supports video recording and 2 network streaming, with adjustable code rate
Scoreboard Supported
LOGO Any size (maximum 940 * 540) and position, supporting alpha transparent channel (PNG image)
PIP Supports advanced application scenarios such as arbitrary cropping, enlargement, and layout
Exposure Supports custom colors and IRE levels for overexposure and underexposure
False Color Built in RED and ARRI pseudo color tables, supporting custom pseudo color settings
Waveform Supports waveform, Histogram, Vector
3D LUT 17th order 3D LUT support
Video format
HDMI Input 4096x2160p60/59.94/50/30/29.97/25/24/23.98
2160p60/59.94/50/30/29.97/25/24/23.98
1080p60/59.94/50/30/29.97/25/24/23.98
1080i50/1080i60
720p60/59.94/50/30/29.97/25/24/23.98
576i/480i/576p/480p
HDMI PGM output 1080p 60/50/30/24
HDMI Color Space RGB/YUV
USB streaming Maximum support of 1080p60
Data flow support 1080p 60/59.94/50/30/29.97/25/24/23.98
Others
Power consumption 7~24V 12W

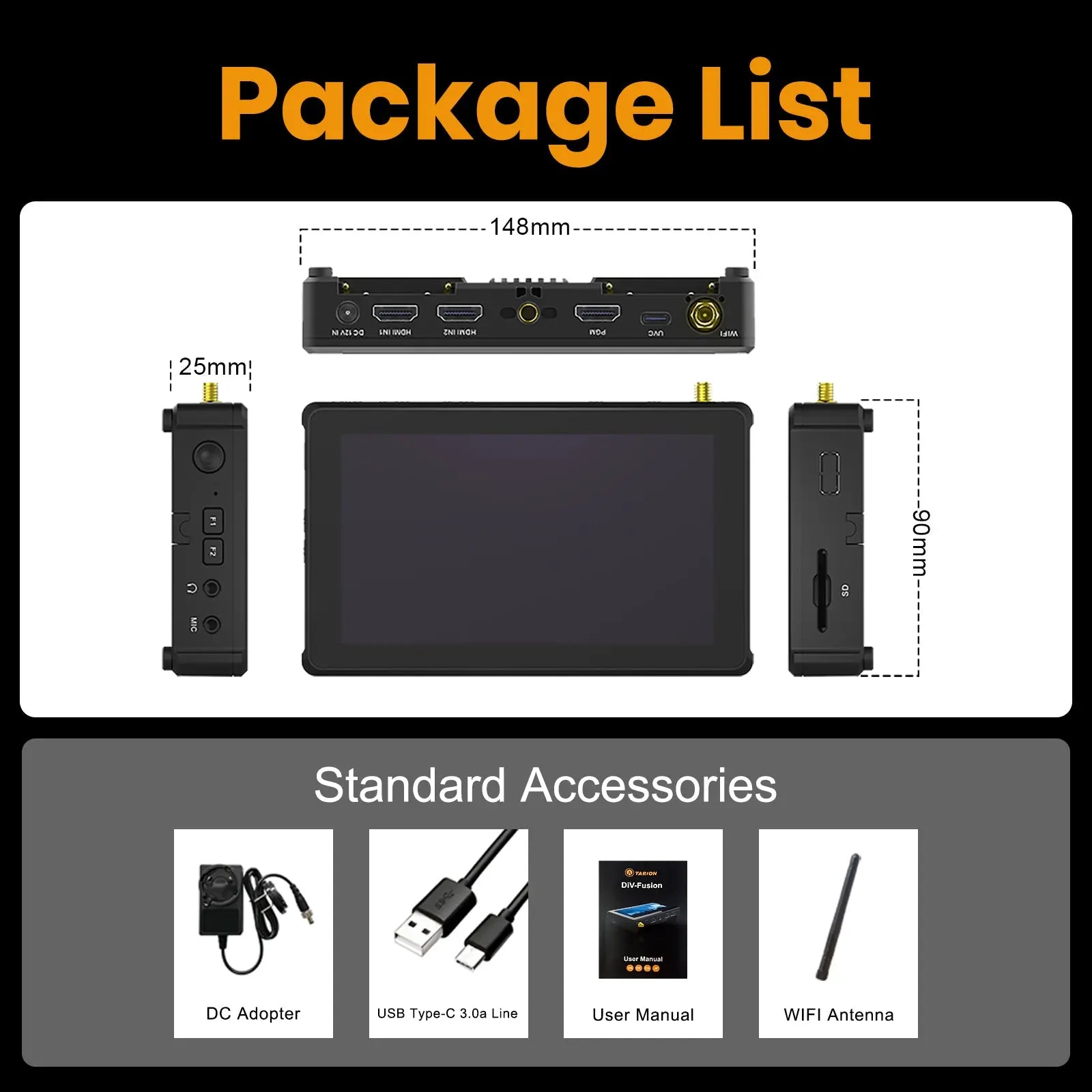

Size(LWD) 148*90*26mm(Whole machine casing)/148*128.8*26mm(WIFI shrinkage)/148*210*26mm(WIFI extend)
Weight 260g
Temperature Operation temperature:0℃~40℃,storage : -30℃~70℃
Accessory Transformer(12V 2A)x1; USB cable(A To C)x1(Optional);
